HDG WATER TANK

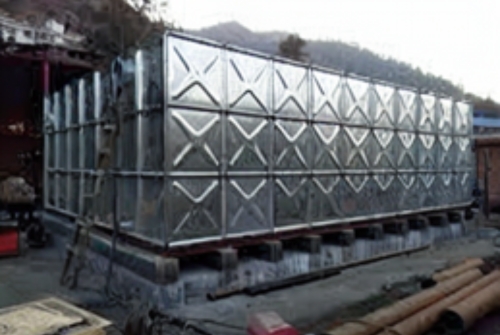

HDG Water Tank is a water storage tank that gets its strength from a process called Hot-Dip Galvanizing. This involves dipping the tank in molten zinc, creating a strong layer that protects it from rust and corrosion. This method ensures the tank is sturdy and can withstand different conditions, making it a reliable choice for storing water in various environments.
TECHNICAL DATA
PANELS
●MATERIAL
1. Q235B raw material complying China GB/T 700-2006 standard.
2. Surface zinc layer 70μm thickness complying GB/T19001-2008 standard.
3. Surface treatment optional: Enamel coating.
●SIZE & WEIGHT
1. The size of steel panels are produced by standard with 1.22*1.22 m,1*1 m, 1*0.5 m and 0.5*0.5 m.
2. The panel thickness is depends on tank height.
3. The maximum height available is 5 meters (Need add external reinforcement of I-beam for 5 m height).
●WATER TANK HEIGHT MATCHES PANEL THICKNESS.
| Height | Bottom Board | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top board |
|---|---|---|---|---|---|---|---|
|
1000 mm |
3 mm |
3mm |
|
|
|
|
5mm |
|
1500 mm |
3 mm |
3 mm |
3mm |
|
|
|
2mm |
|
2000mm |
3mm |
3mm |
3mm |
|
|
|
2mm |
|
2500 mm |
4mm |
4mm |
3 mm |
3mm |
|
|
2mm |
|
3000mm |
4mm |
4mm |
3mm |
3mm |
|
|
5mm |
|
3500mm |
4mm |
4mm |
3mm |
3mm |
2.5mm |
|
2mm |
|
4000mm |
5mm |
5mm |
4mm |
3mm |
2.5mm |
|
2mm |
|
4500mm |
5mm |
5mm |
5mm |
4mm |
3mm |
2.5mm |
2mm |
|
5000mm |
5mm |
5mm |
5mm |
4mm |
3mm |
2.5mm |
2mm |
ACCESSORIES
1. Concrete beam 2. Outlet flange 3. Inlet flange 4. Manhole 5. External ladder 6. C-channel 7. Vertical support
8. Tie rod plate 9. Sealing rubber 10. Top angle bar
●BOLTS & NUTS—— 1. Hot dipped galvanized
●SKID BASE —— 1.Hot dipped galvanized 2.Painting
●INTERNAL STRUCTURE—— 1. Hot dipped galvanized
●FLANGES—— 1. Hot dipped galvanized 2. PVC
●SEALING RUBBER—— 1. Food grade white color EPDM 2. Silicon
●WATER INDICATOR—— 1. Glass with brass valve 2. Float type
